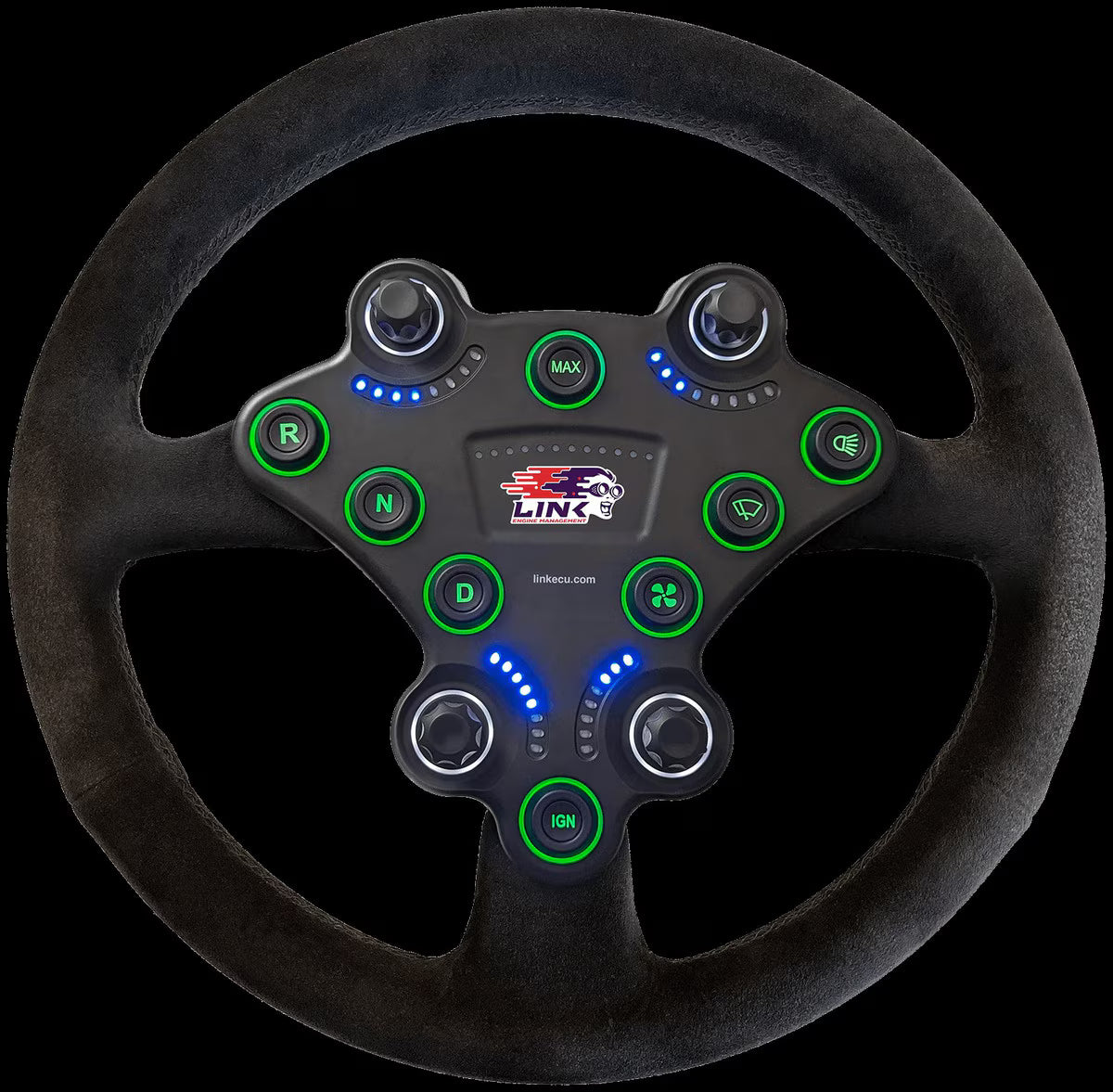

Link RACEPAD - Steering Wheel CAN Keypad

SKU 101-0332
8 Backlit Buttons and 4 Rotary Knobs
4 Analogue Inputs for additional Sensors or Switches
CAN Configurable with G4X/G5 PC Link – Change button
LED backlight colour, individual button indicator ring
colour, programmable to show change in status, flashing
option, multiple modes including momentary, latched
and toggle
8 Blue LED Lights on Rotary Encoders while all 8
Pushbuttons Buttons have customisable RGB LED Rings
CAN Bus Communication back to Engine Management
System
Compatible with all G4X and G5 ECUs
Customizable Button Inserts – The replacement system
for individual inserts makes modifying the keypad layout
simple and economical
12 Fixed LEDs in centre can be used for configurable
feedback – RPM etc.
Includes mounting plate adapter to support
common aftermarket steering wheel bolt patterns
including MOMO (6x70mm) and Nardi (6x74 mm)
DTM4 Connector for CAN and Power, Molex Connector
for Analog Inputs
Specifications

Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
Switch Life - 3 million operations
Default Baud Rate - 1000kbit/s
Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
UV Protection - UVB 400 hours
Salt Spray Per - ASTMB117

Weight (Racepad) - 110grams

Dimensions (From front w x h) - 197 x 180mm

Thickness - 36.2mm excluding knob height
