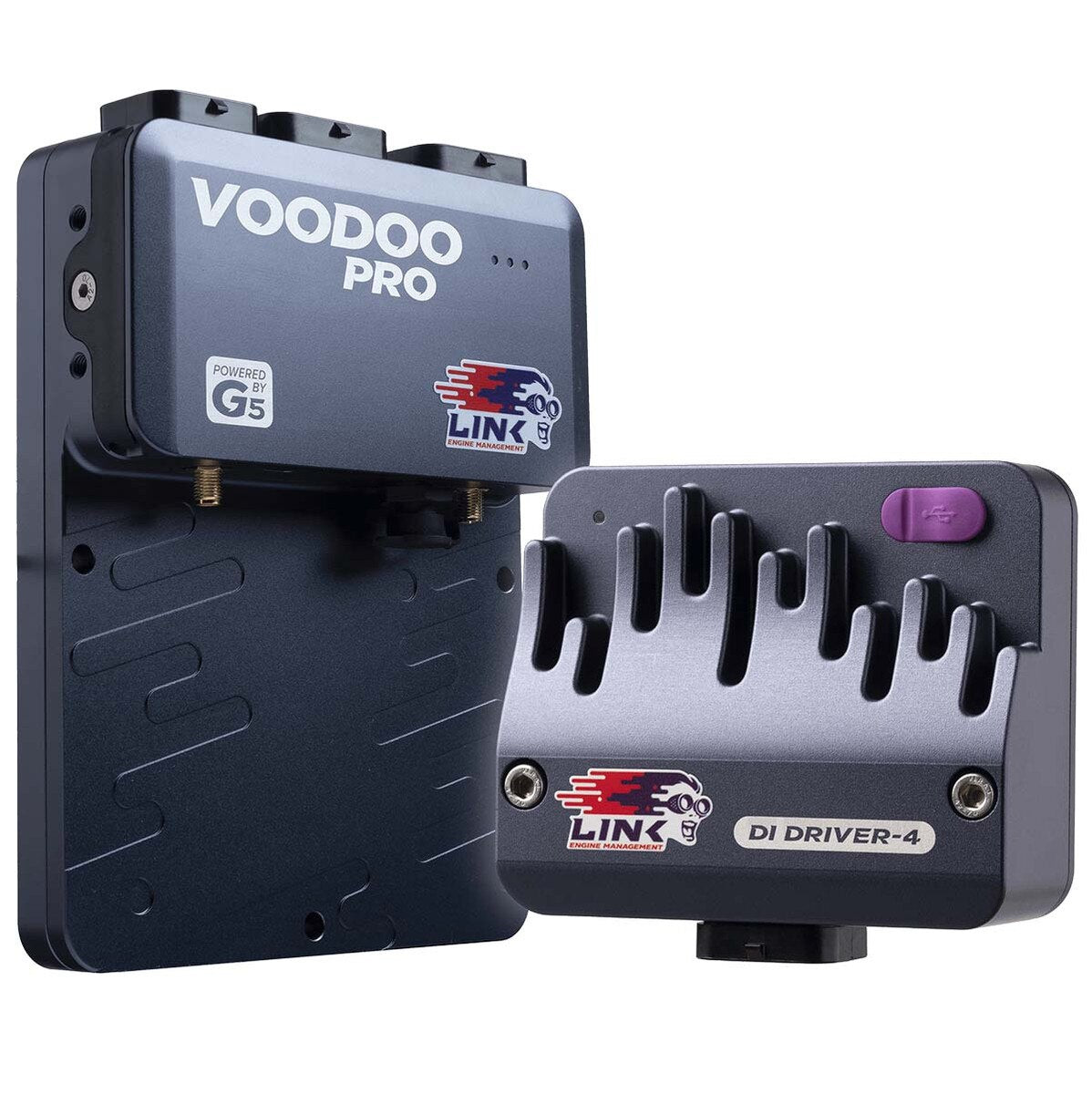

Link G5 Voodoo Pro + DI Driver 4 Bundle

SKU 152-9000B
The Ultimate DI ECU Bundle for High-Performance Builds
Maximize tuning power with this all-in-one direct injection package:
G5 Voodoo Pro ECU — Professional-level engine management with 12 injector channels, 8 ignition outputs, and 4 multi-purpose drives; supports both port and direct injection control.
DI Driver‑4 Module — Handles up to 4 direct injectors and one high-pressure fuel pump; scalable via CAN for full DI setups.
Key Highlights:
Built-in Wi-Fi and GPS, plus dual-wideband lambda and dual e‑throttle support
Massive I/O capacity: up to 24 drives (12 inj, 8 ign, 4 aux), flexible auxiliary outputs (14–30 aux depending on setup)
Powerful ECU ergonomics: dual microcontrollers, drag/rally features (anti-lag, launch control), paddle-shift logic, CAN stream locking, and seamless PC Link software integration
DI Driver‑4 specifics: rugged, sealed CNC enclosure, CAN configurability, USB setup, and supported by Link’s characterisation tools
This bundle delivers unmatched flexibility, scalability, and precision for serious tuners looking to push high-output 4-cylinder motors—and beyond.

Inputs/Outputs:
Control any engine with 2 cylinders, all the way up to 12 cylinders, thanks to:
12 injector pins
8 ignition pins
4 injector/ignition dual role pins
Access up to 30 auxilary pins (when setup for a 4-cylinder sequential engine):
8 dedicated auxiliary pins
4 shared e-throttle/H-Bridge pins
2 shared wideband heater pins
Up to 16 from spare injector and ignition drives
Any unused injector/ignition pins can be used as an auxiliary pin
All ignition and auxiliary pins are back feed protected.
14 analog inputs
10 digital inputs
4 temperature inputs
Dual knock inputs
2 trigger inputs
Dedicated ignition switch pin
2 x internal wideband lambda controllers
Dual e-throttle, with internal solid state throttle disconnect relays
5v sensor supply
CAN 1 input now supported via CAN connector

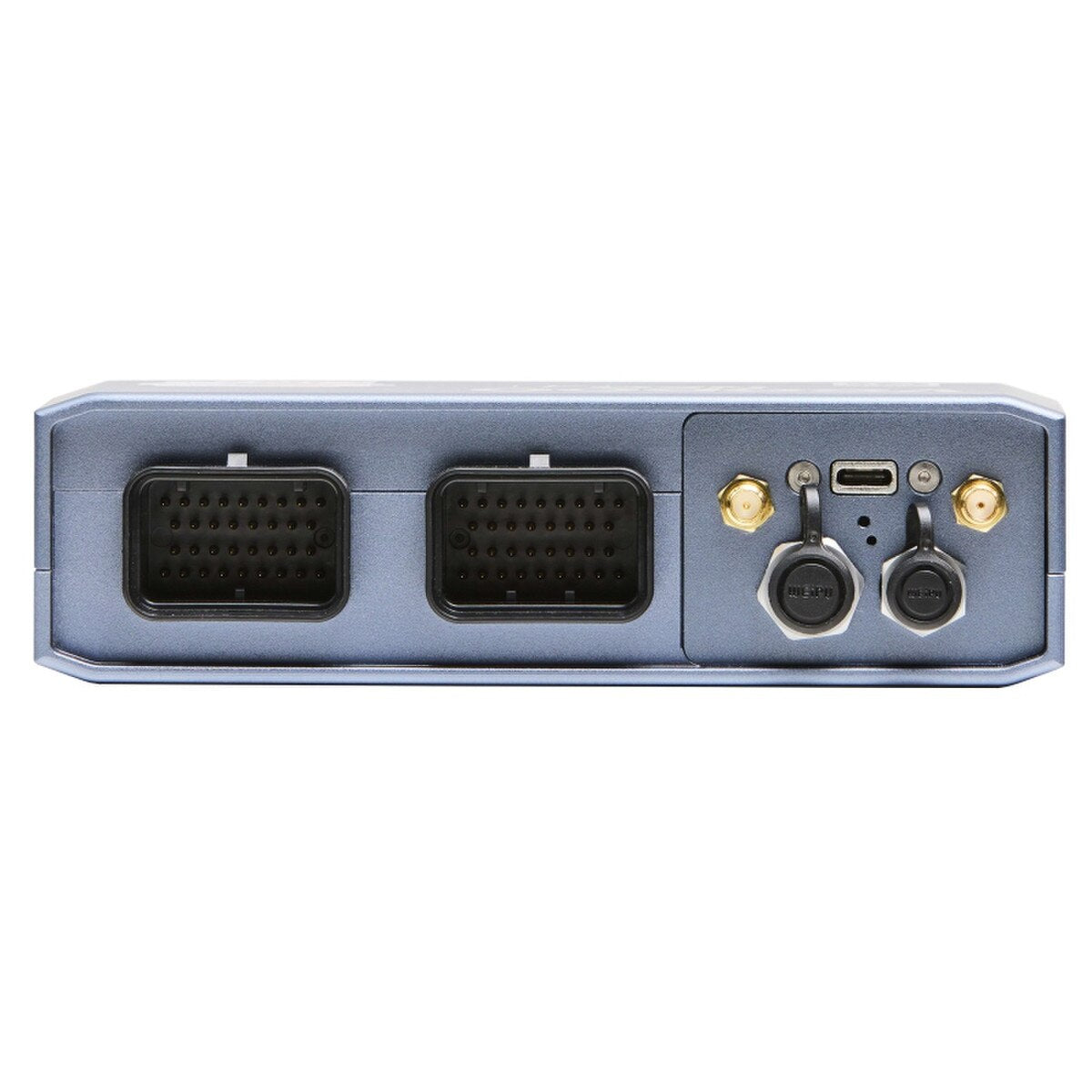

Communications:
USB-C (cable included)
Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (Antenna Included)
Dual CAN (CAN 1 on CAN connector, CAN 2 on header E)
GPS (antenna included)

Four Direct Injection Injector Drives
One High Pressure Fuel Pump Drive
Water Resistant, -40 to 80 °C Operating Temperature
1 x CAN bus with software configurable termination
1 x USB Type-C for configuration via DI Link software (free download, Windows only)
Sealed CNC billet aluminium enclosure
26-Way waterproof Superseal automotive connector
Uses the Super Seal D plug
Compatible with a wide range of engine management systems, and solenoid direct injectors. (Does not support Piezo Direct Injectors)
Max Boost Current: 17.9A, Max Boost Voltage: 65V
Max Peak Current: 17.9A, Max Peak Duration: 2000uS
Max Hold Current: 5.0A, Max Hold Curation: 164mS
Max engine RPM running a Bosch HDEV: 14,200RPM
