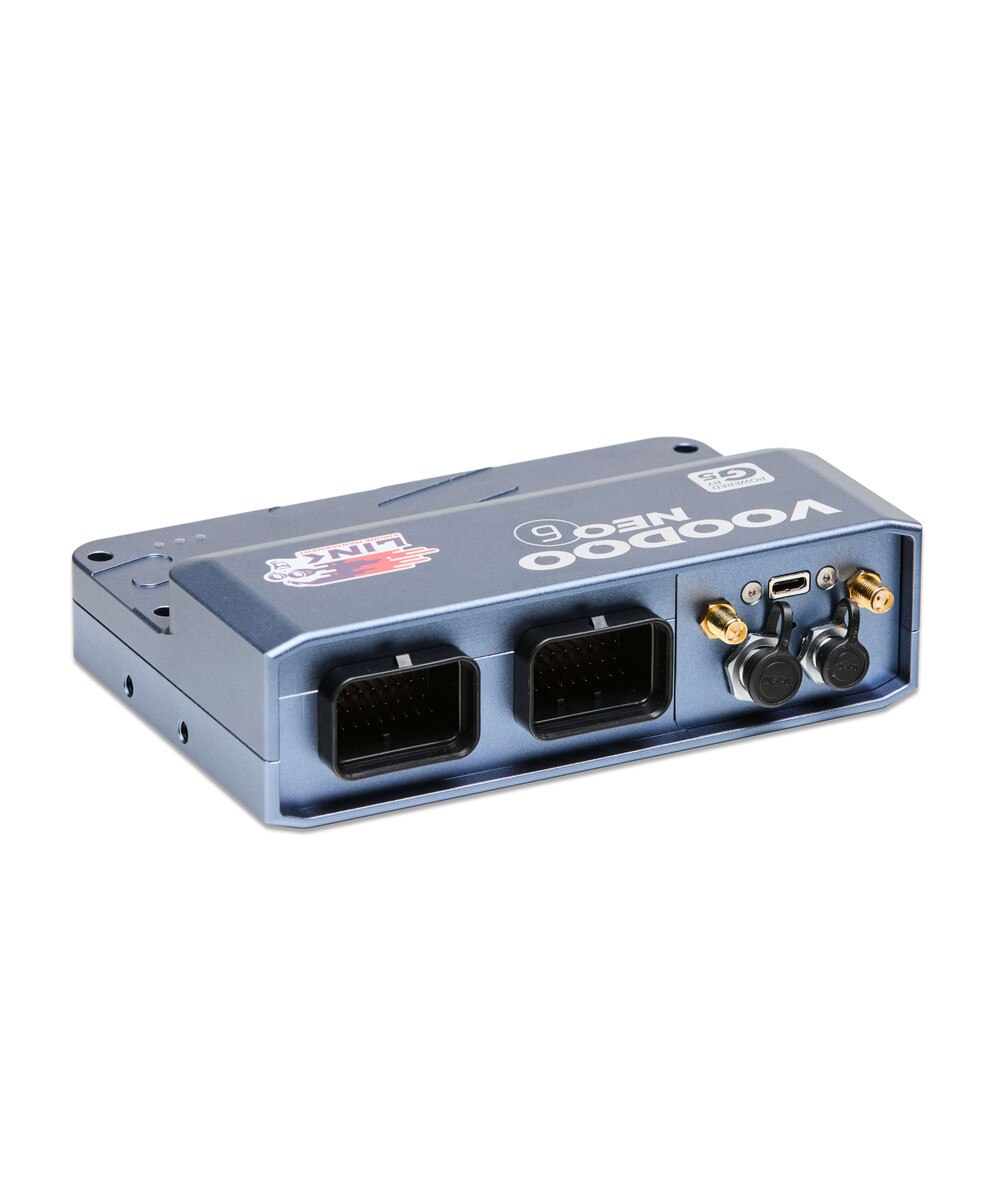

Link G5 Voodoo Neo 6 + 2 x DI Driver 4 Bundle

SKU 156-9200B
High-Performance Direct Injection ECU Bundle

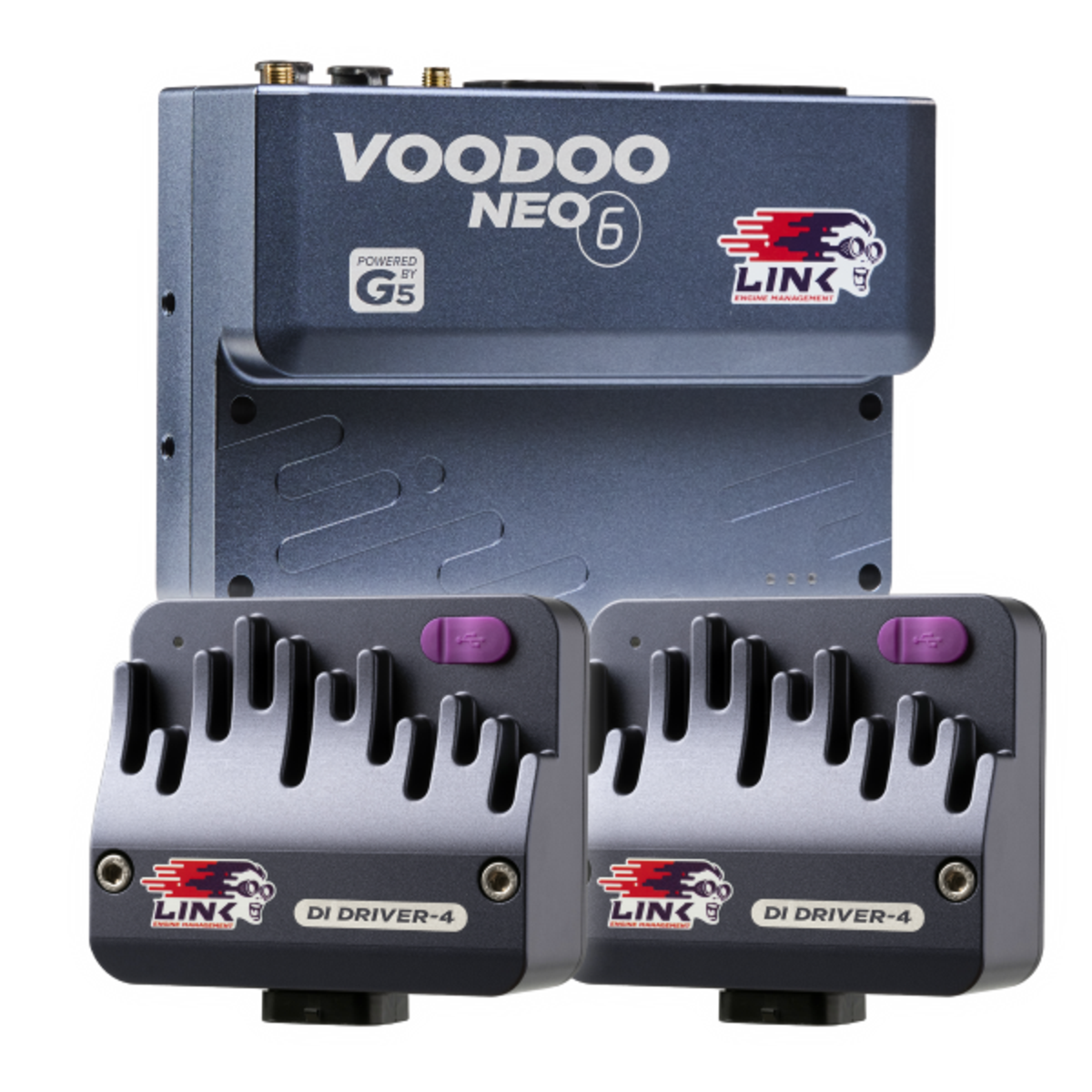

Unlock full control of your high-performance engine with the G5 Voodoo Neo 6 + two DI Driver‑4's Bundle. Ideal for direct injection setups, this package includes:
G5 Voodoo Neo 6 ECU – Controls up to 6-cylinder direct/staged injection engines or 8-cylinder port/direct injection engines with advanced spark control.
2 x DI Driver-4 – Seamlessly manages up to 4 direct injectors each; stackable for expanded setups. Two of these are included in the package.
Key Features:
Built-in wideband controller and dual e-throttle H-bridge outputs
USB-C with power-over-USB, Wi-Fi, Ethernet, and GPS connectivity
1 GB of onboard logging (up to 100 kHz, 250 channels)
Robust I/O: 12 injector outputs (4 DI capable), 8 ignition, 6 aux, and 6 flexible ADIOs
Compact, sealed CNC enclosure with versatile mounting options
This bundle delivers cutting-edge tuning capability, fast setup, and maximum flexibility for serious motorsport applications.

Inputs/Outputs
Control up to 8 cylinders with port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, thanks to:
12 injector pins
8 ignition pins
6 aux. output pins
(4 injector pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.)
6 ADIO pins
Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency.
Neo 6 has Inj/DI pins which are used as either an injector pin, Aux or a Digital Input pin. They can read PWM/frequency.
Any unused injector/ignition pins can be used as an auxiliary pin.
All ignition and auxiliary pins are back feed protected.
3 analog inputs
10 digital inputs
4 temperature inputs
2 knock inputs
2 trigger inputs
1 x wideband lambda controller
Dual H-Bridge e-throttle control
Dedicated ignition switch pin
5v sensor supply
CAN 1 via Weipuconnector. CAN connector now supplies power and ground.
Communications:
USB-C (cable included)
Power over USB
WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included)
CAN: New WEIPU connector supplies power for CAN devices
Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network.
GPS: Functional when GPS antenna connected (antenna included)
 Data Logging:
1gb logging capacity
Logging over WiFi
100kHz max. total logging rate
250 logging channels

Four Direct Injection Injector Drives
One High Pressure Fuel Pump Drive
Water Resistant, -40 to 80 °C Operating Temperature
1 x CAN bus with software configurable termination
1 x USB Type-C for configuration via DI Link software (free download, Windows only)
Sealed CNC billet aluminium enclosure
26-Way waterproof Superseal automotive connector
Uses the Super Seal D plug
Compatible with a wide range of engine management systems, and solenoid direct injectors. (Does not support Piezo Direct Injectors)
Max Boost Current: 17.9A, Max Boost Voltage: 65V
Max Peak Current: 17.9A, Max Peak Duration: 2000uS
Max Hold Current: 5.0A, Max Hold Curation: 164mS
Max engine RPM running a Bosch HDEV: 14,200RPM
