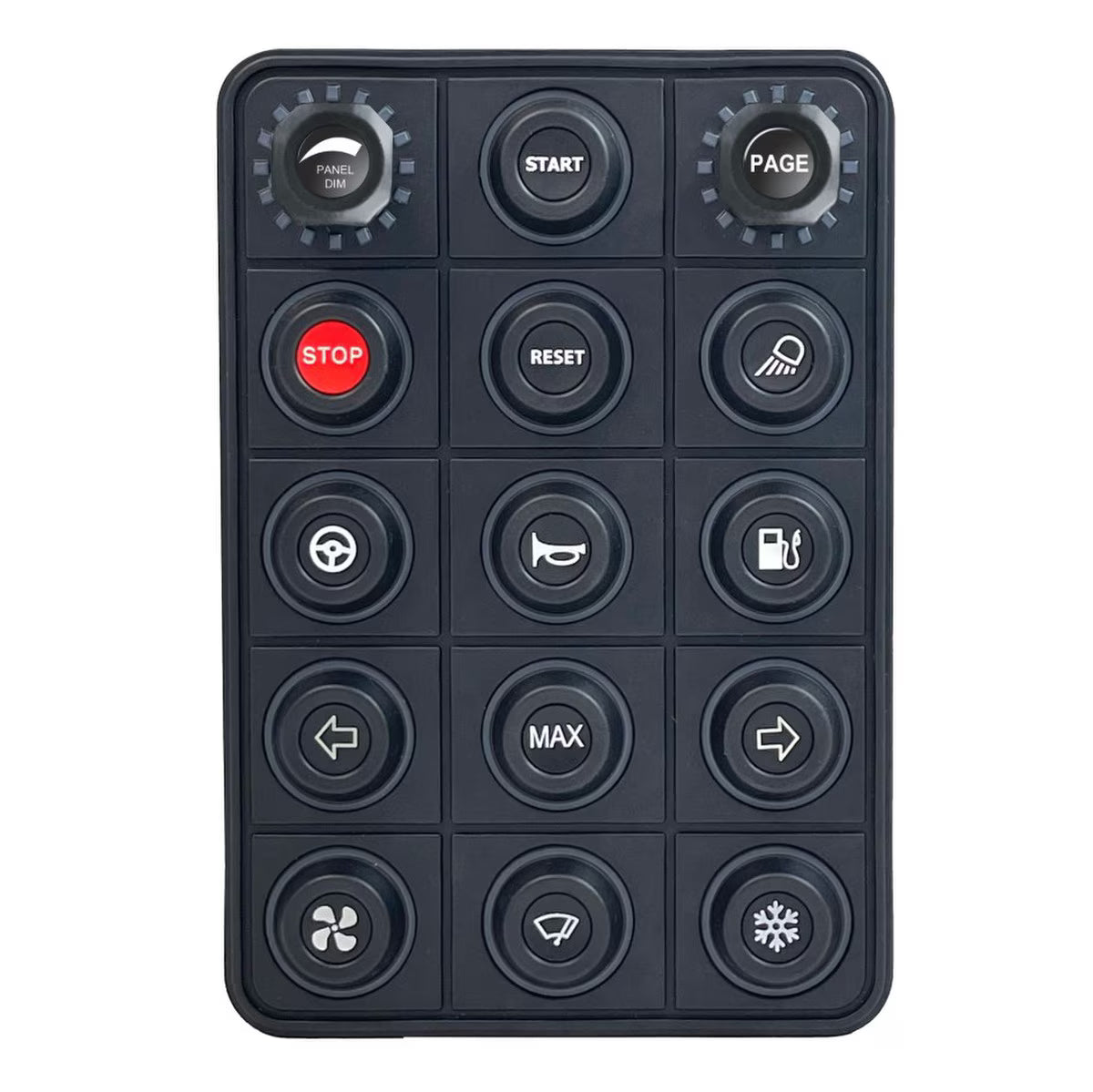

Link CAN Keypad 15 Button + 2 Rotary Encoders

SKU 101-0330
15 Buttons and 2 Rotary Encoders (push enabled, buttons
can function independent to rotary encoder)
4 Analog Inputs for additional Sensors or Switches
CAN Configurable with G4X/G5 PC Link – Change button
LED backlight colour, individual button indicator ring
colour, programmable to show change in status, flashing
option, multiple modes including momentary, latched
and toggle.
CAN Bus Communication back to Engine Management
System/PDM
16 Blue LED Lights on Rotary Encoders while all 13
Pushbuttons Buttons have customisable RGB LED Rings
Compatible with all Link G4X and G5 ECUs
Customizable Button Inserts – The replacement system
for individual inserts makes modifying the keypad layout
simple and economical
DTM4 Connector for CAN and Power, Molex Connector
for Analogue Inputs
Specifications

Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
Switch Life - 3 million operations
Default Baud Rate - 1000kbit/s
Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
UV Protection - UVB 400 hours
Salt Spray Per - ASTMB117

Weight - 360grams

Dimensions - 105 x 152.5 x 16.3mm (excl mounting studs)
