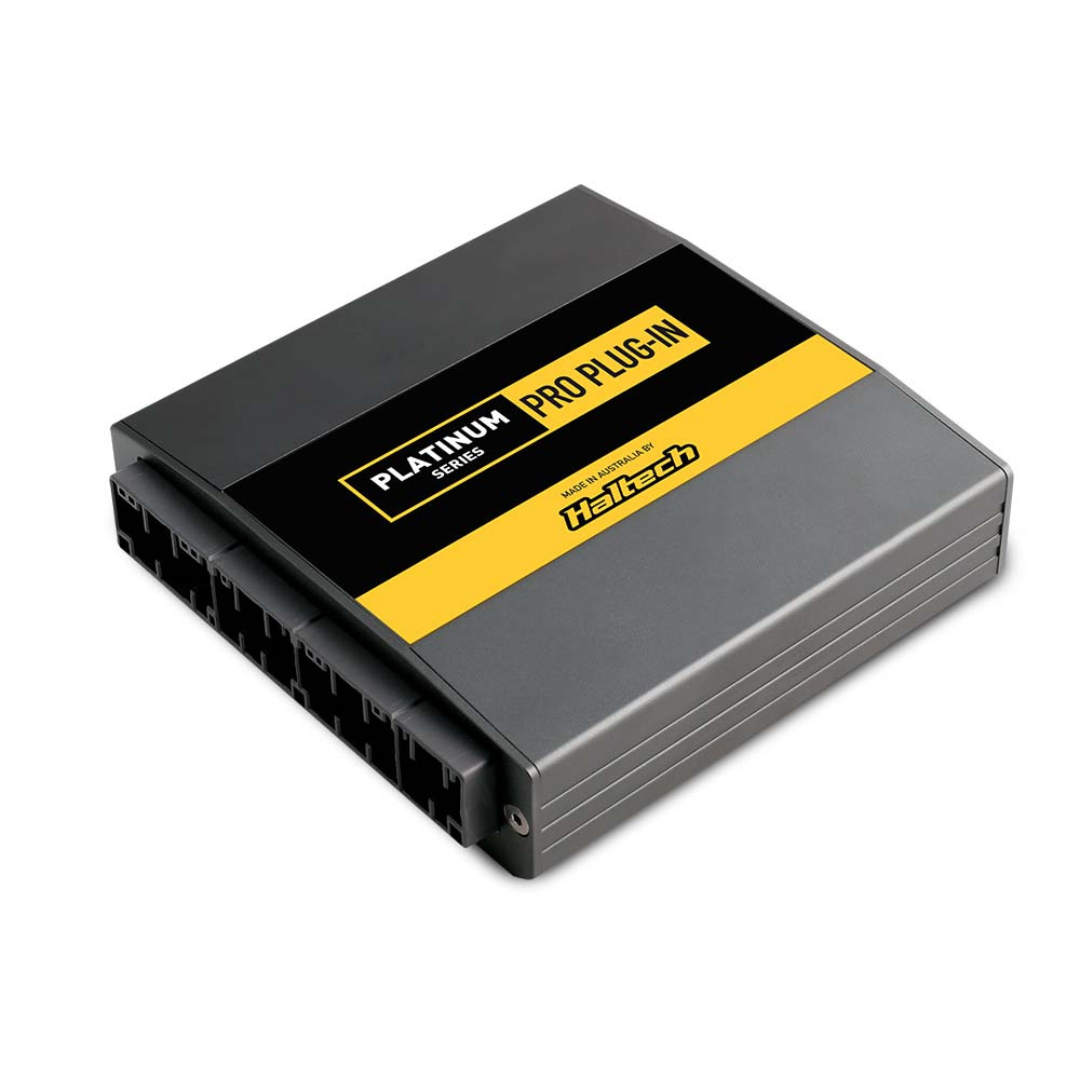

Haltech Platinum Pro Plugin ECU Honda S2000

Suits: Honda S2000 AP1 (00-04) and AP2 (05). Non DBW, manual transmission only.

Includes: Platinum PRO Direct Plug-in ECU, Plug and pins for auxiliary I/O harness. Haltech CAN adaptor cable DTM-4 female receptacle/socket to 8 pin black Tyco 3"/75mm (used to adapt a Platinum series ECU to a DTM-4 Elite CAN system), USB programming cable and USB Software Key.

Notes: Non DBW, manual transmission only. Requires a CAN I/O12 Expander Box to accept an input from a flex fuel sensor.

If you are after a simple plug-and-play option and your car still has its original engine and wiring in it, a Plug-in ECU is the easiest and quickest solution. You simply unplug the factory ECU, and plug the Haltech ECU directly into the factory harness. Load your base map and you're ready to go!

Direct plug and play replacement of the OEM ECU, no rewiring necessary
Uses the car's factory sensors
Windows 2000, XP, Vista, Windows 7 & 10 compatible software
Real-time programming, instant hesitation free adjustment while the engine is running

Fully user definable 32 x 32 mapping
Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
Wideband auto-tuning using user definable target AFR table
