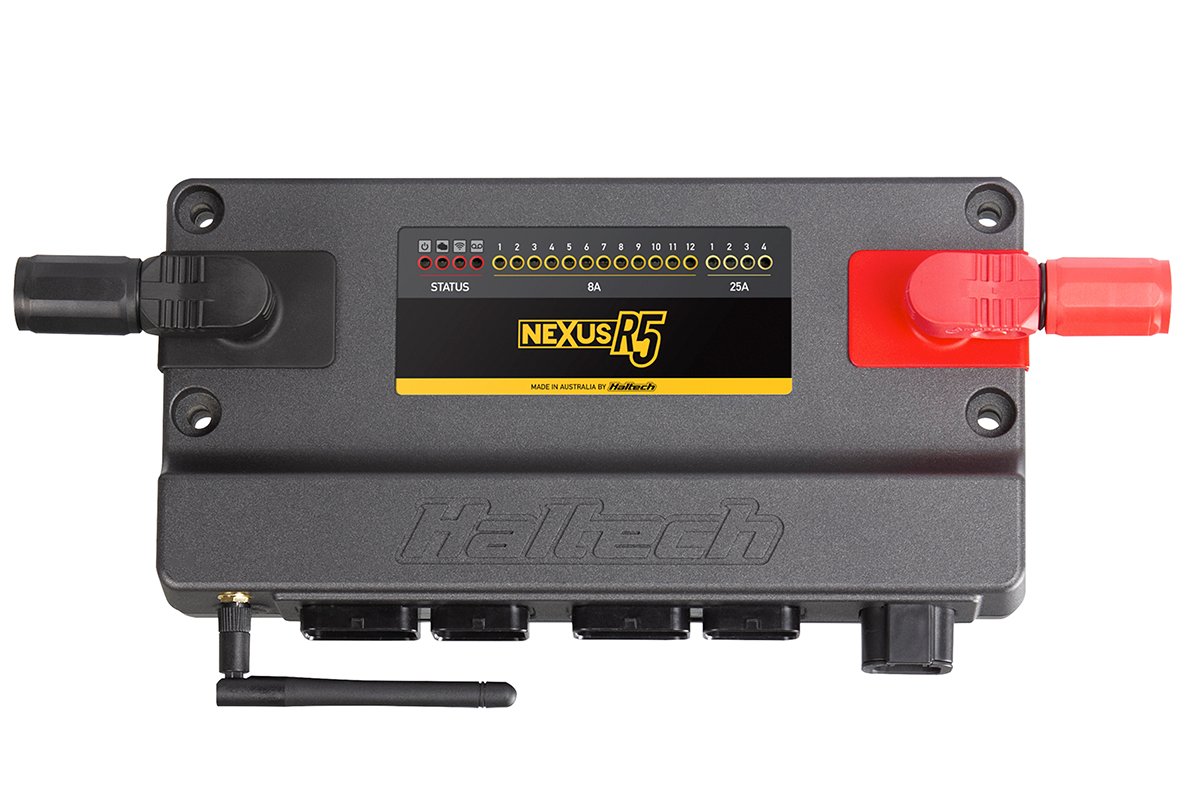

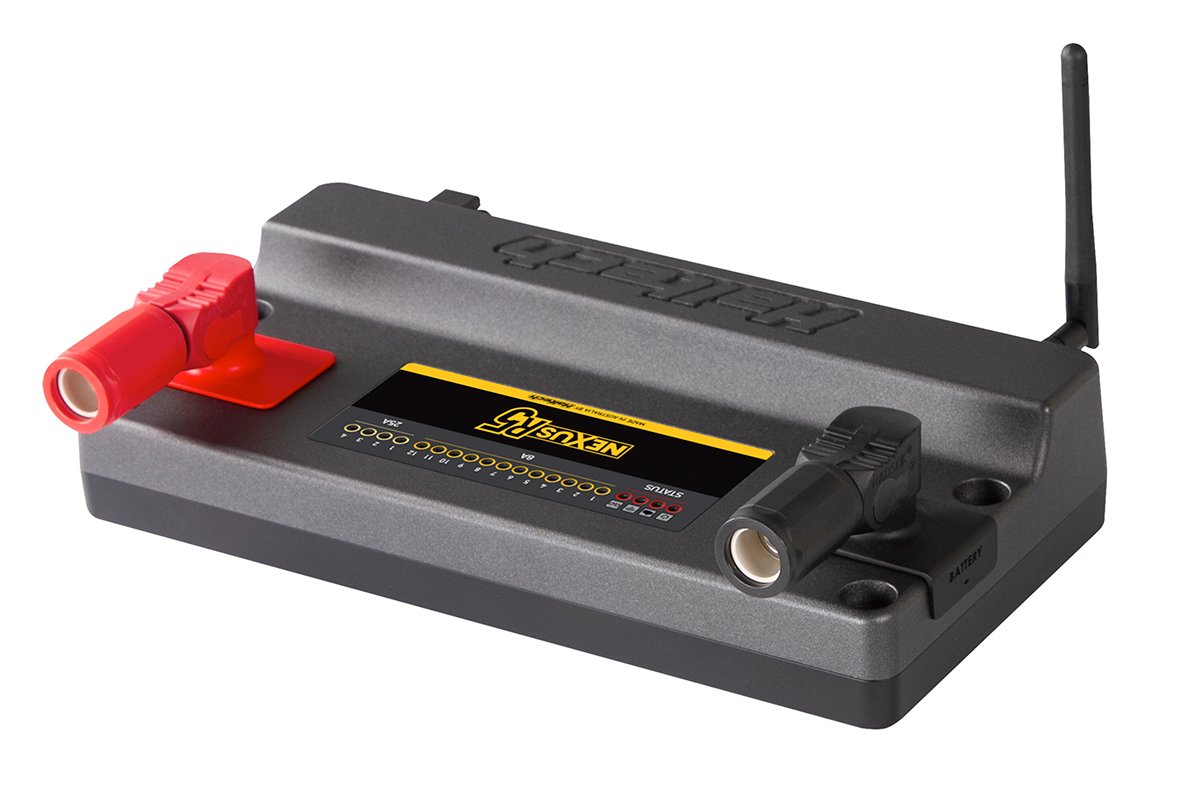

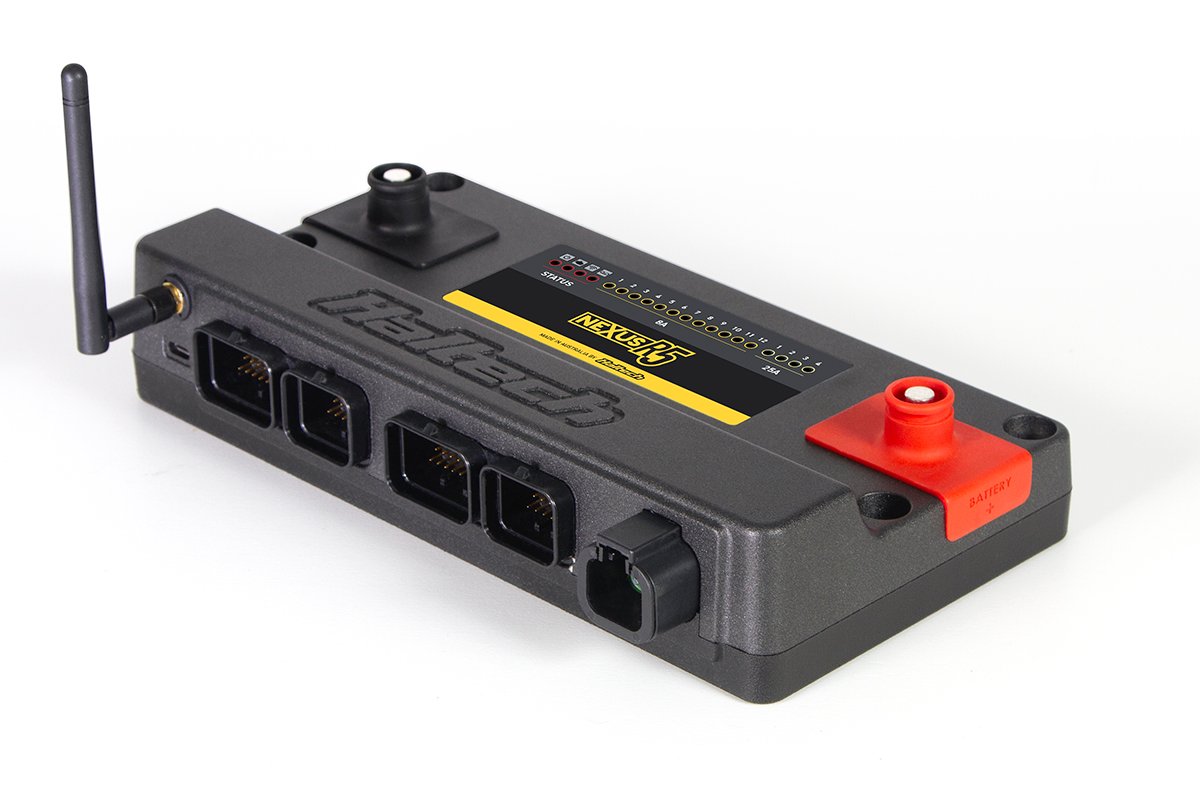

Haltech Nexus R5 VCU only

HT-195000 · Haltech Nexus R5 - VCU

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

At a glance

• Outputs: Up to 18 injector and 12 ignition
• Suits: Engines with up to 12 cylinders or up to 6 rotors. Racing applications where advanced race features, data logging and power management control is required

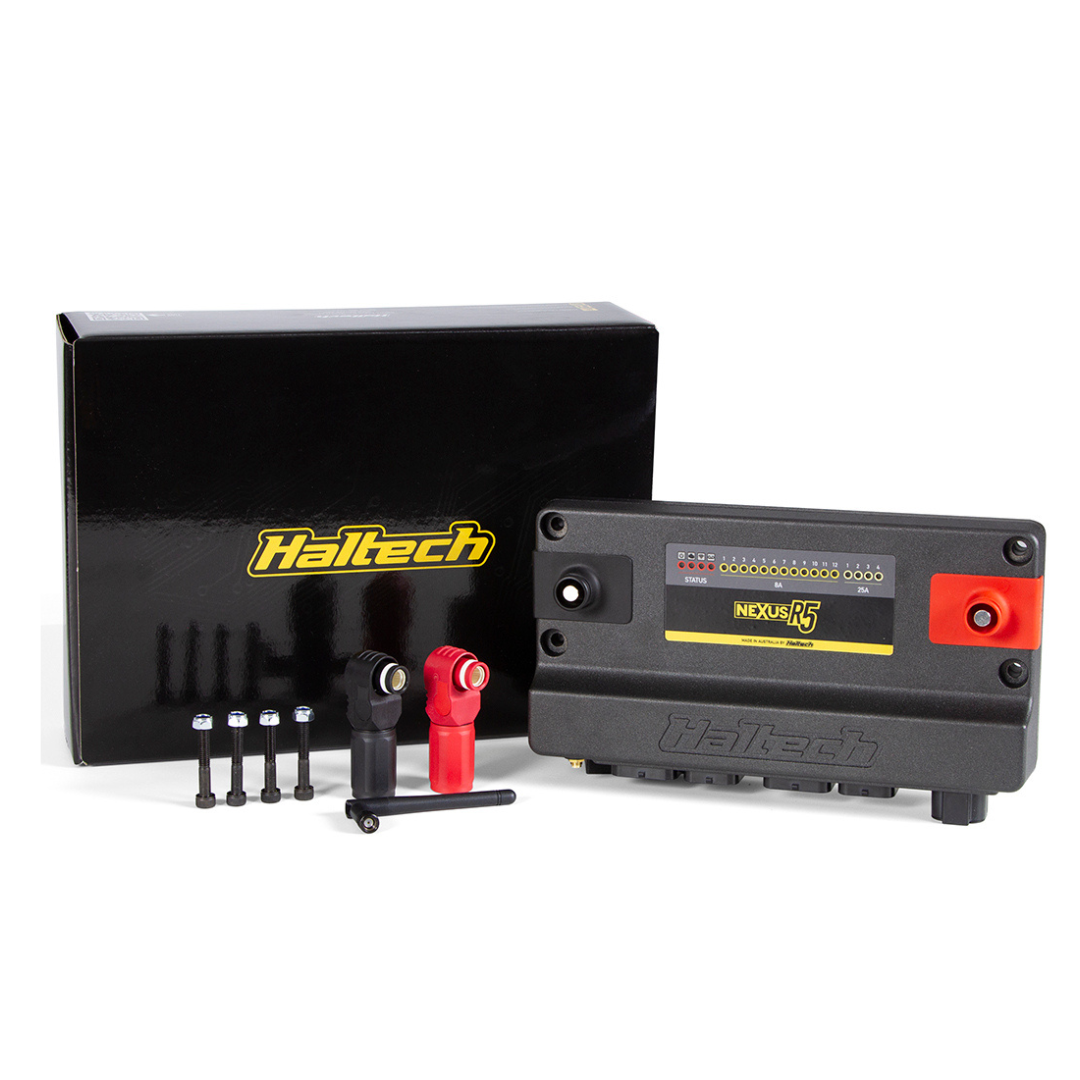

• Includes: Nexus R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap

Key features

• Controlled via NSP (Nexus Software Programmer)
• Long Term Learning
• Stepper Motor Control
• 4D Closed Loop Boost Control
• Closed Loop CO2 Control
• Rotational Idle
• Launch Control
• Traction Control
• Anti-Lag
• Dual Knock Control
• Trans Brake Control
• Race Timer

Automatic transmission control

• Ford AODE/4R70W
• GM 4L60E
• GM 4L80E
• Toyota A340E
• Lenco
• Liberty

Specifications

• Analog Voltage Inputs (AVI): 23
• Differential Engine Position Inputs: 2 (Trigger and Home)
• Synchronized Pulsed Inputs (SPI): 10
• Knock Sensor Inputs: 2
• On-board Wideband Controller: 2 x NTK/LSU 4.9
• Injection: 18 (peak and hold)
• Ignition: 12
• Ignition Switch Input: 1
• Total Digital Pulsed Outputs (DPO): 8
• Half Bridge Outputs (HBO): 4 8A
• 25A High Current Outputs (HCO): 4
• CAN Bus Networks: 3
• MAP sensor: External
• USB 2.0: USB-C
• Boost Control: 4D Closed Loop
• Closed Loop O2 Control: Dual
• Supported: On-Board PDM, Inertia / G-Sensor, Low Power Up via Cable, Wi-Fi, Compatible with Haltech Connect App, Anti-Lag/Rotational Idle, CO2 Control, Flex Fuel, Intake Air Bleed Control, Launch Control, Race Timer, Rolling Anti-Lag, Shock Travel & Ride Height, Torque Management (Driveshaft and Engine RPM Targeting), Traction Control, Trans Brake

Fitting and tuning

Rapid Performance is a Haltech Authorised Dealer in Timaru. We can supply the wiring, sensors and dash to suit your build, and fit and tune it in our workshop. Get in touch for a quote.
