Rapid Performance

Haltech Nexus R3 VCU only

Haltech Nexus R3 VCU only

Regular price $3,709.00 NZD
Regular price $0.00 NZD Sale price $3,709.00 NZD
Sale Sold out
Shipping calculated at checkout.
Suits: Engines with up to 8 cylinders or up to 4 rotors. Racing applications where advanced race features, data logging and power management control is required.

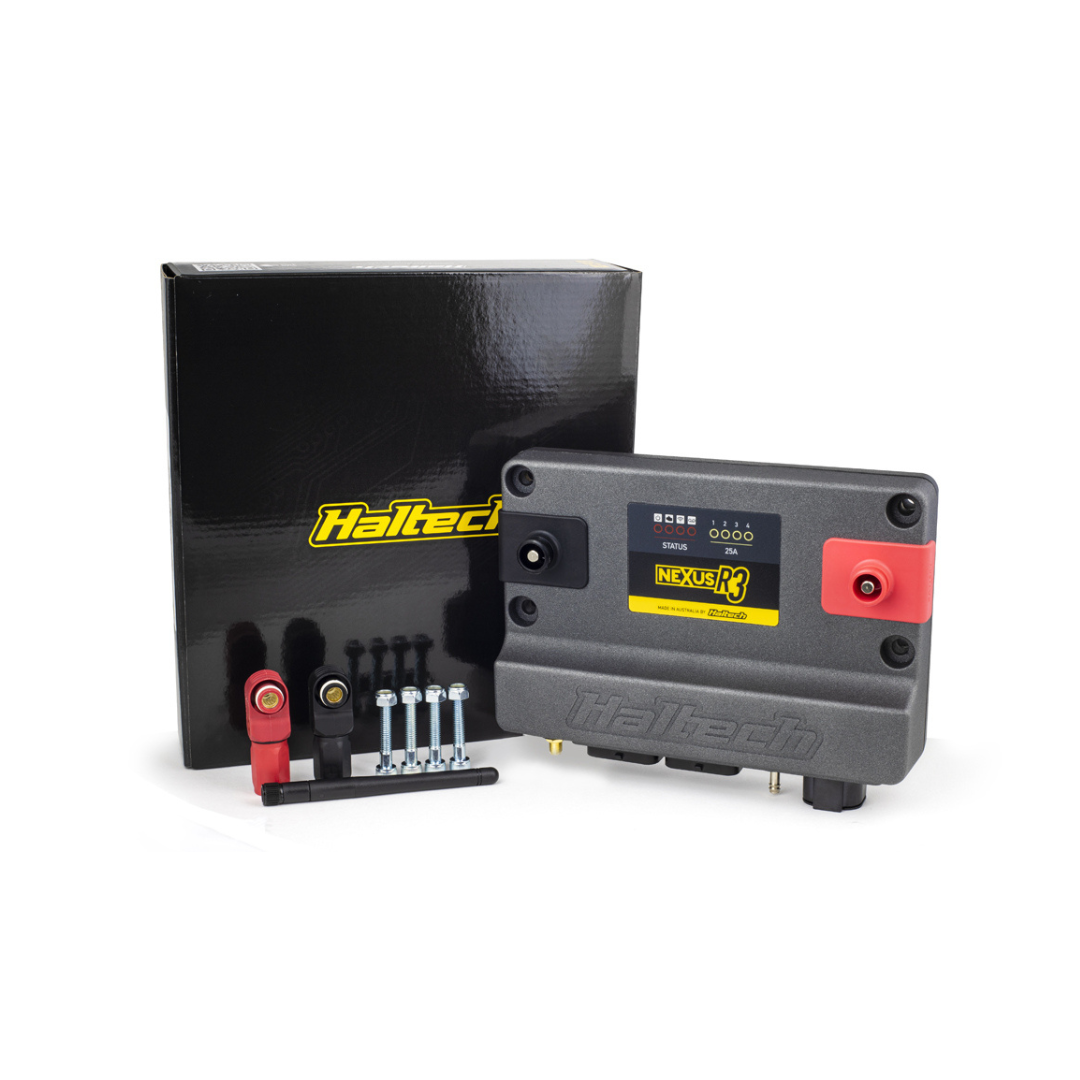

Includes: Nexus R3 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software.

Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
8 x peak/hold injector drivers (can be used as low side drive outputs)
8 x low current ignition outputs (can be used as low side drive outputs)
6 x low side drive outputs, PWM capable (DPOs)
6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
1 x on-board wideband controller, supporting NTK and LSU4.9
1 x on-board 4 bar MAP sensor
2 x CAN ports with switchable termination
