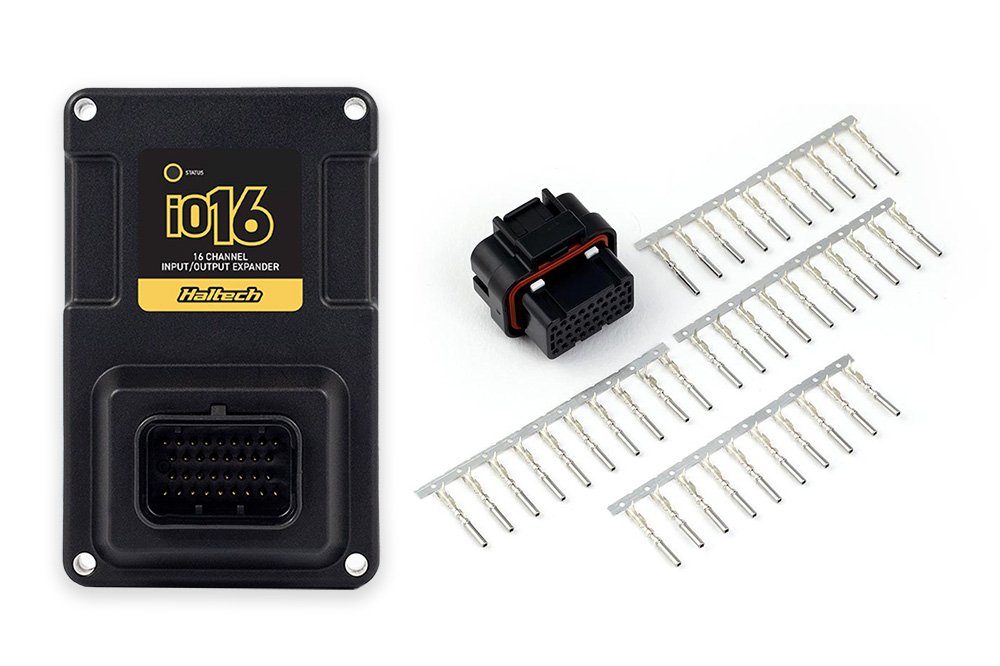

Haltech Nexus IO16 with Plug and Pin Kit

Includes: IO16 and Connector Kit

Overview

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.

Features

INPUTS

• 6 x Analogue Voltage Inputs (AVI)
• 0-5V readable range
• Selectable 1k pull-up resistor to 5V
• 4 x Synchronised Pulsed Inputs (SPI)
• Reluctor/Digital
• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

OUTPUTS

• 6 x Half Bridge Outputs (HBO)
• 8A current (sink/source)
• Capable of 0-100% duty cycle
• 2.2khz switching speed
• NOT suitable for DBW throttle application

WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

OTHERS

• 3 x 5V output (sensor power)
• 4 x Sensor ground
• Note: Any 5V and sensor ground pins can be paired when wiring sensors.
