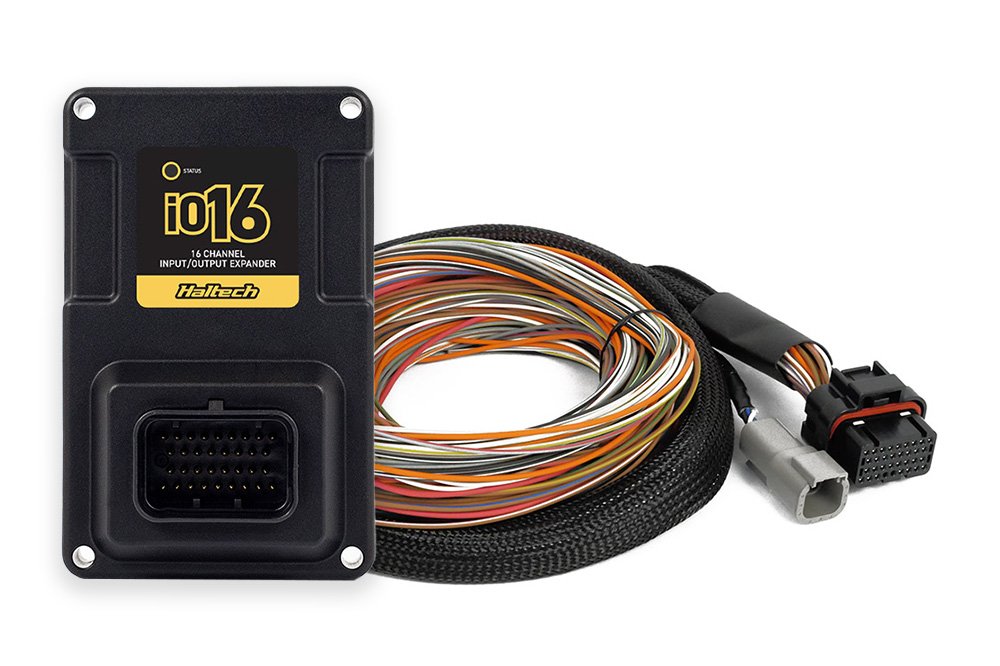

Haltech Nexus IO16 + IO16 Universal Wire in harness 2.6M (8.5')

Haltech Nexus IO16 + IO16 Universal Wire in harness 2.6M (8.5')

$1,080.00 NZD
$1,135.00 NZD $1,080.00 NZD
Sale Sold out
Shipping calculated at checkout.
In stock – ships in 2–4 working days

Overview

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

This harness, when used with a Nexus IO16, expands a Haltech Nexus or Elite ECU's functionality by adding 16 user configurable channels of combined inputs and outputs via the Haltech CAN system

Features

INPUTS

  • 6 x Analogue Voltage Inputs (AVI)
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
  • 4 x Synchronised Pulsed Inputs (SPI)
  • Reluctor/Digital
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V

OUTPUTS

  • 6 x Half Bridge Outputs (HBO)
  • 8A current (sink/source)
  • Capable of 0-100% duty cycle
  • 2.2khz switching speed
  • NOT suitable for DBW throttle application

WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

OTHERS

  • 3 x 5V output (sensor power)
  • 4 x Sensor ground
  • Note: Any 5V and sensor ground pins can be paired when wiring sensors.
