Haltech Elite 1500 terminated harness kit - 13BT S4 & S5 IGN-1A ignition
Haltech Elite 1500 terminated harness kit - 13BT S4 & S5 IGN-1A ignition
HT-150978
Note: suit Bosch EV1 injectors
Suits: S4/5 CAS (Crank Angle Sensor) WBC1 CAN O2 Wideband Controller ready (Controller and sensor not included)

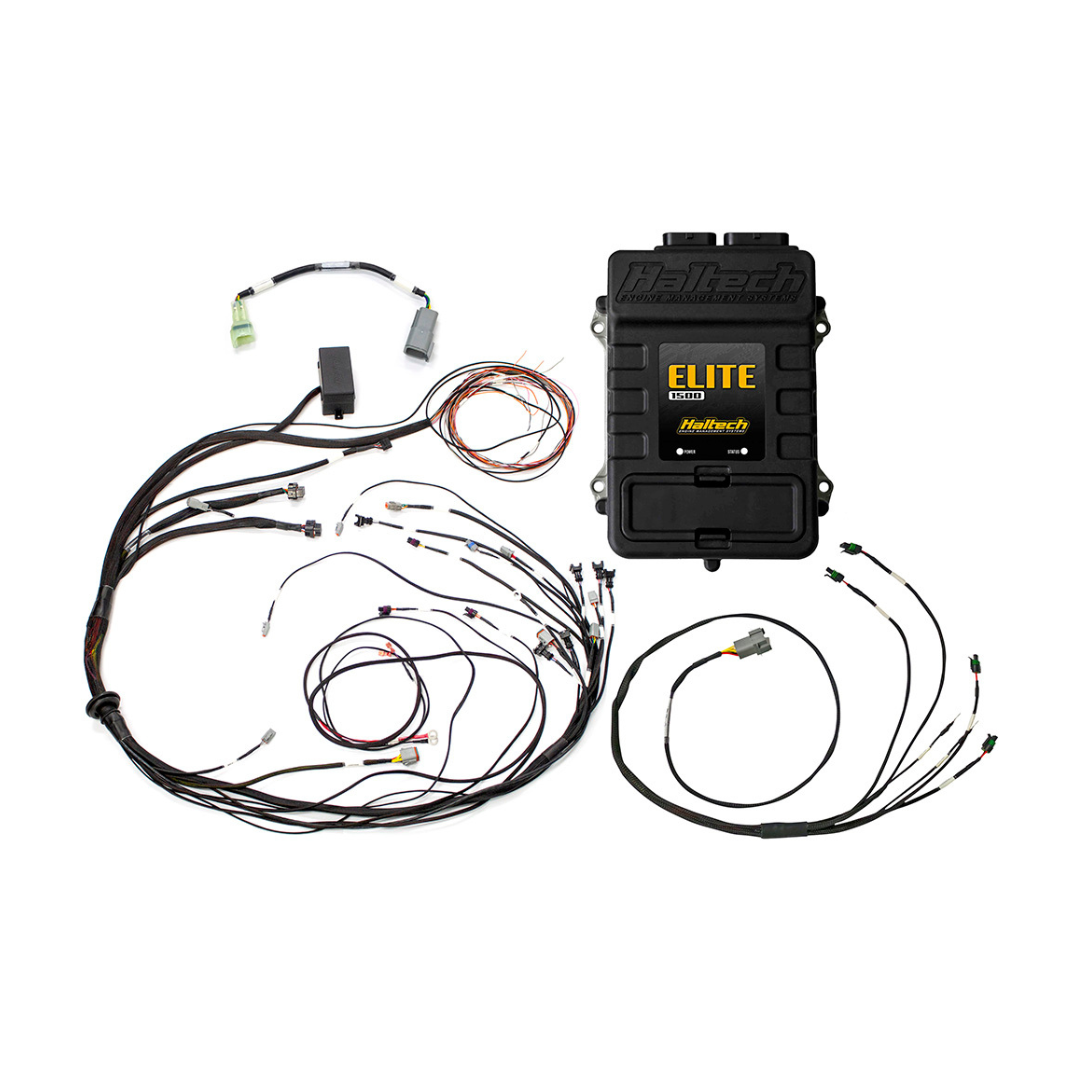

Includes: Elite 1500 ECU with DBW and Race Functions, engine harness with fuse block, firewall grommet and pre-wired High Output IGN-1A Inductive Coil (with built-in Ignitor) Ignition Harness, USB programming cable and USB Software Key.
Notes: IGN-1A coils are NOT included. Please order 4 x HT-020114 if required.
The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
High Output IGN-1A Coil Terminated Ignition Harness
The Haltech Mazda 13B Ignition Harness connects to the Haltech IGN-1A ignition coils
Recommended as an add-on to the Elite 1000/1500 Terminated Engine Harness for Mazda 13B.
ECU OVERVIEW
Featuring a robust, environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, knock control, and much more, the Elite 1500 ECU provides engine calibrators the tools they need to get the job done right. Alongside the Elite 1500 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
Supports 1 to 12 cylinder engines
2 rotor engines
Normally aspirated or forced induction
Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
Staged, sequential, semi sequential, batch or multipoint injection patterns
Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
Connect to a wide range of display dashes and expansion devices via CAN.
4 x fuel injection outputs
4 x ignition outputs
12 x digital outputs
10 x analogue voltage inputs
4 x synchronised pulsed inputs
3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor)
2 x dedicated engine position inputs with extensive trigger type support
Up to 45 channels of Input & Output (I/O) expansion (via CAN)
USB laptop communication (Windows)
ESP Calibration Software - intuitive and easy to use
