Haltech Ecu and Universal Wiring Kits

LENGTH: 2.5m (8')
OUTPUTS: Up to 4 injector and 4 ignition.
SUITS: Universal 1-12 cylinder or 2 rotor applications.

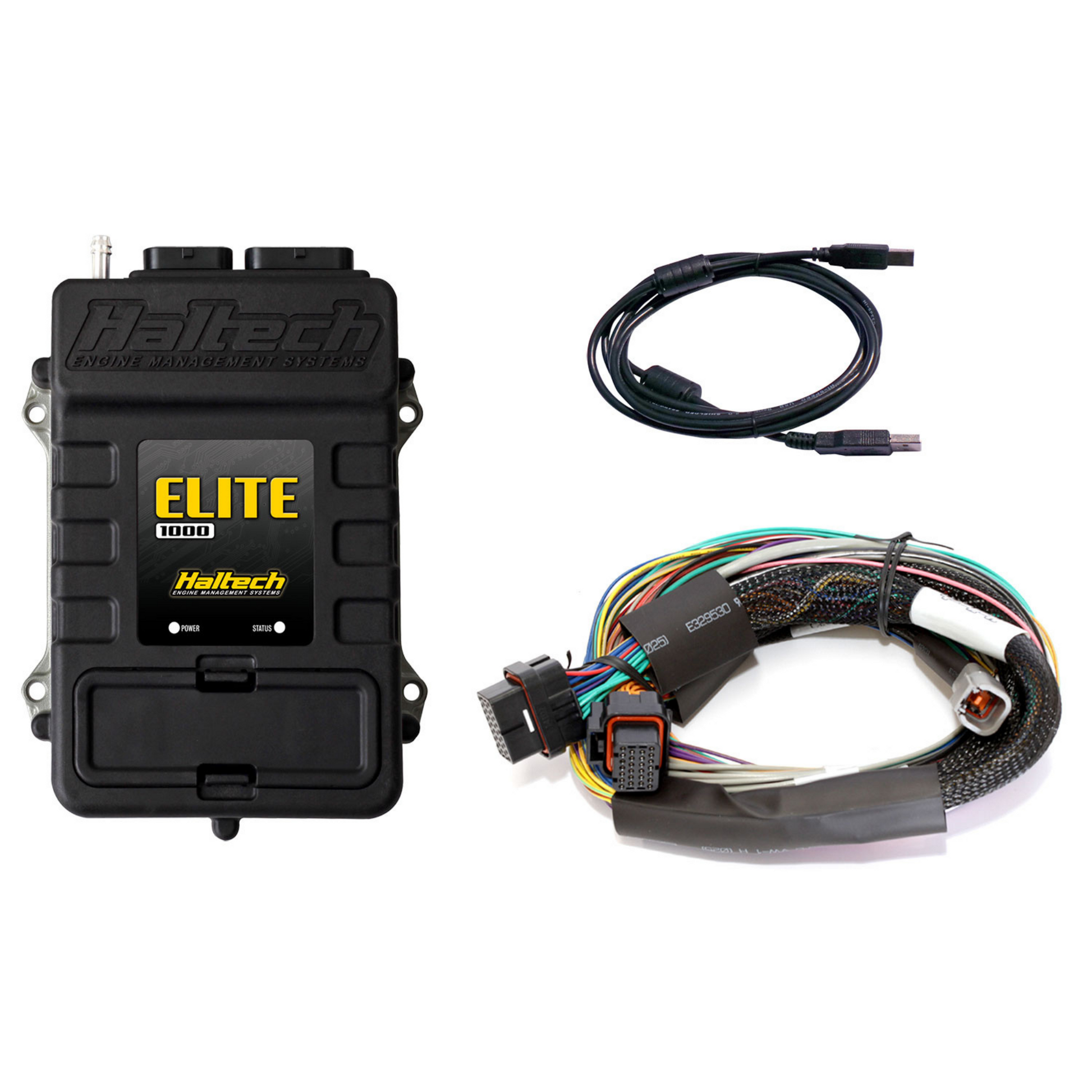

INCLUDES: Elite 1000 ECU, Basic Universal Wire-In Harness, USB programming cable and USB Software Key.
NOTES: Basic, two connector ECU kit ideally suited for popular 1990s and early 2000s performance engines. Does not include fuse and relay box.

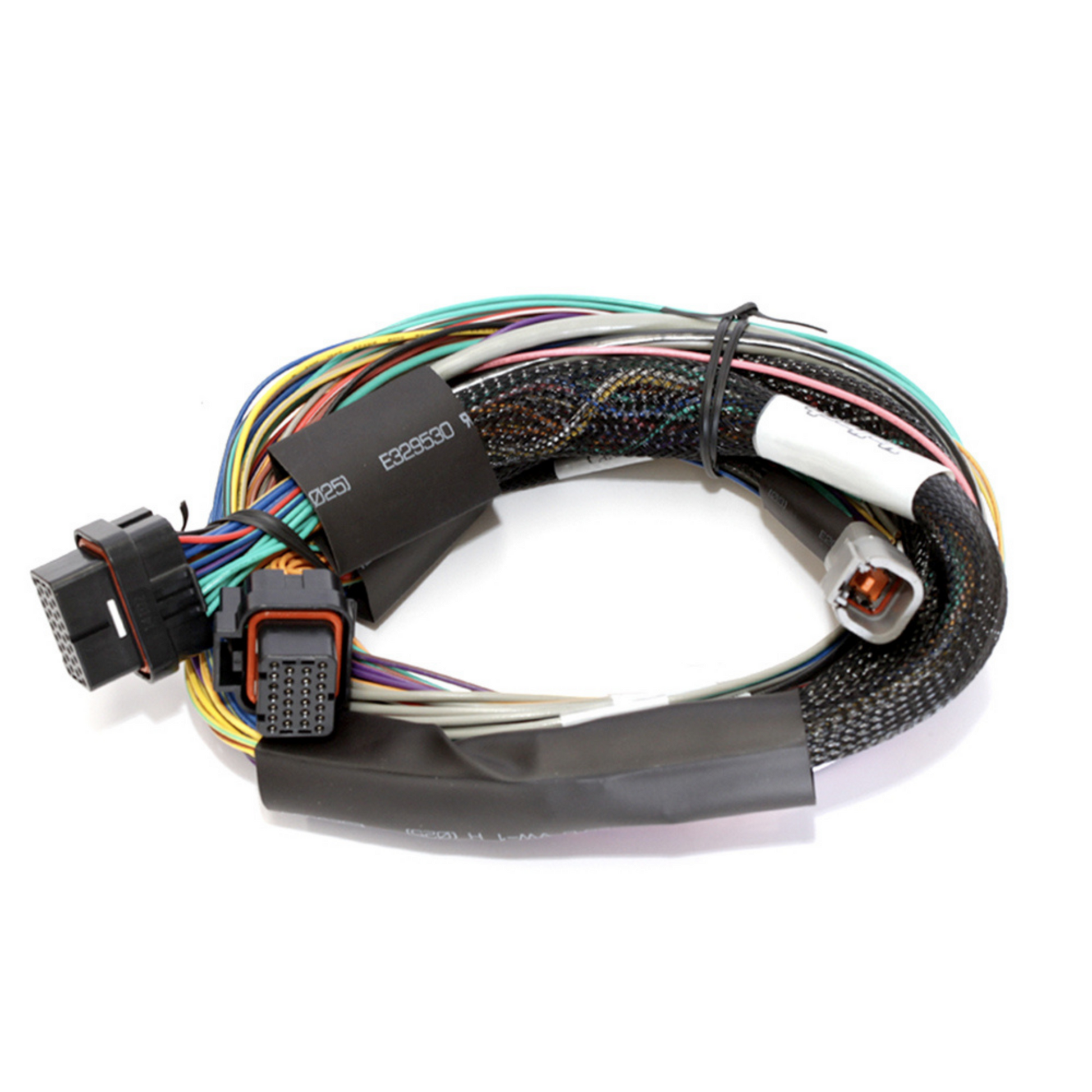

HARNESS OVERVIEW
Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go!

Colour coded and labelled wires that match the detailed wiring diagram for a confusion-free construction process.

The wiring diagram is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

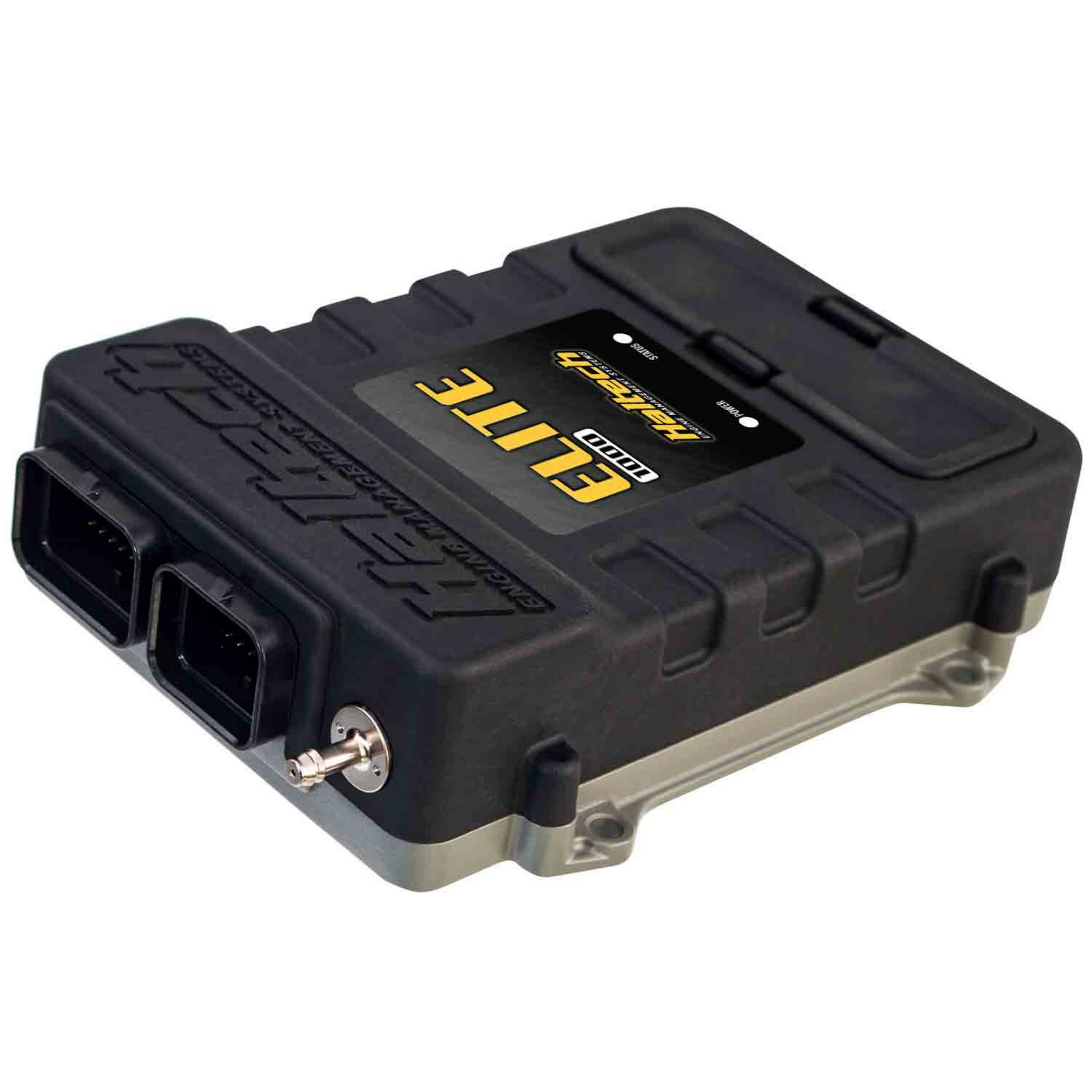

ECU OVERVIEW
Haltech's Elite 1000 ECU takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed case, intake cam control, short term and long term map learning, knock control, and much more, the Elite 1000 ECU provides engine calibrators the tools they need to get the job done right. Alongside the Elite 1000 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

Supports:

• 1 to 12 Cylinder engines
• 2 Rotor engines
• Normally aspirated or forced induction

• Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Staged, Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
• Connect to a wide range of display dashes and expansion devices via CAN.
• Waterproof Case (With Pocket Cover Fitted)

• 4 x Fuel Injection Outputs
• 4 x Ignition Outputs
• 10 x Digital Outputs
• 10 x Analogue Voltage Inputs
• 4 x Synchronised Pulsed Inputs
• 3 x Dedicated inputs (Knock, ignition Switch & onboard MAP Sensor)
• 2 x Dedicated Engine Position Inputs with extensive trigger type support
• Up to 45 channels of Input & Output (I/O) expansion (via CAN)
• USB Laptop communication (Windows)
• ESP Calibration Software - Intuitive and easy to use
