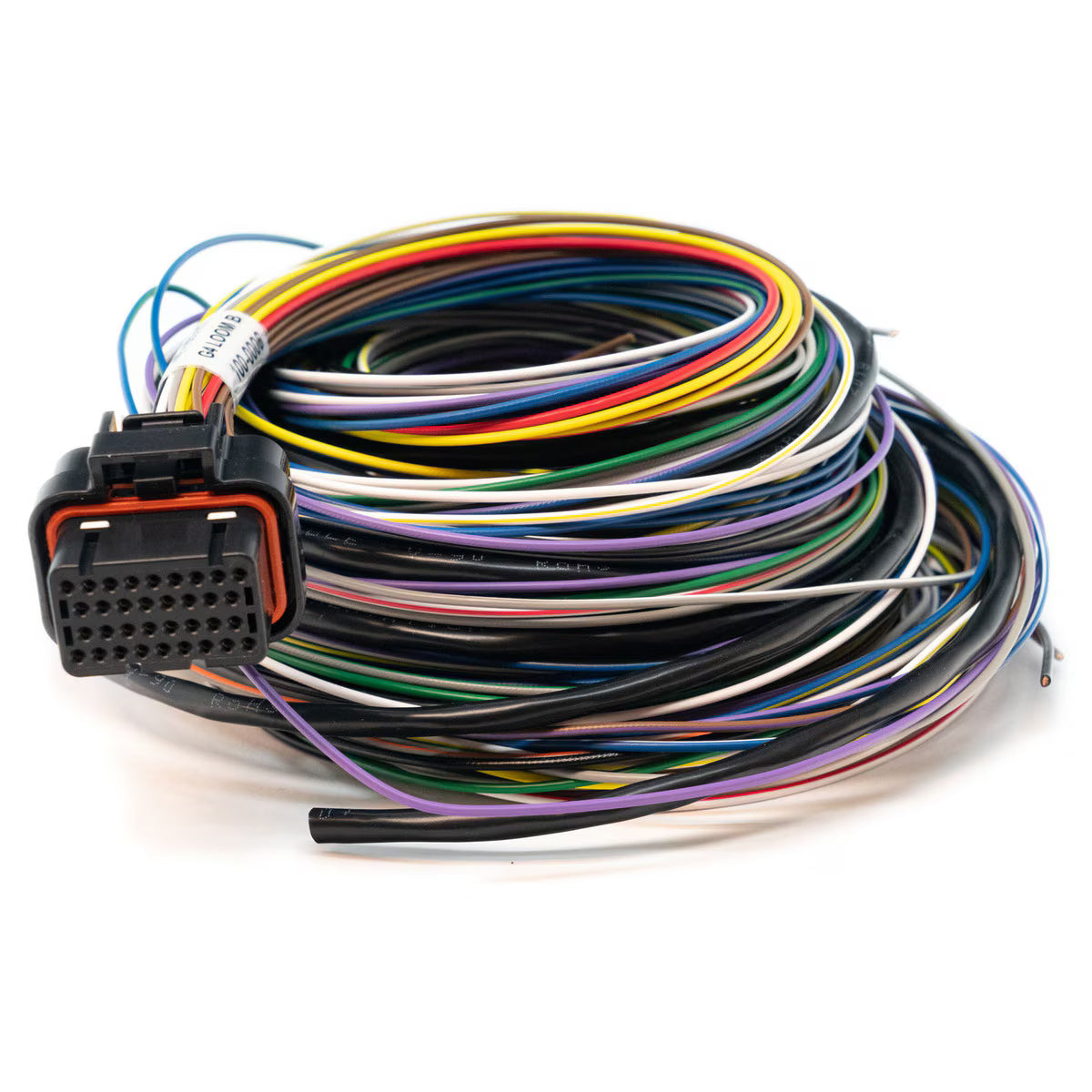

B Loom Medium (2LB)

SKU 101-0006
2.5 m long 'B' loom to suit G4, G4+ and G4X ECUs

Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘B’ Loom has a Link ‘B’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 0.4m and 5m lengths.

The Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.

Added features of 2.5m and 5m ‘B’ Looms include:
-Shielded Dual Core wires for knock signals

Suitable for:

Link G4X Storm (Loom A also required)
Link G4X and G4+ Fury (Loom A also required)
Link G4X, G4+ and G4 Xtreme (Loom A also required)
Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required)
Link G4+ Storm Black (Loom A also required) – Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models
Vipec V88 (Loom A also required)
Vipec i88 (Loom A also required)
